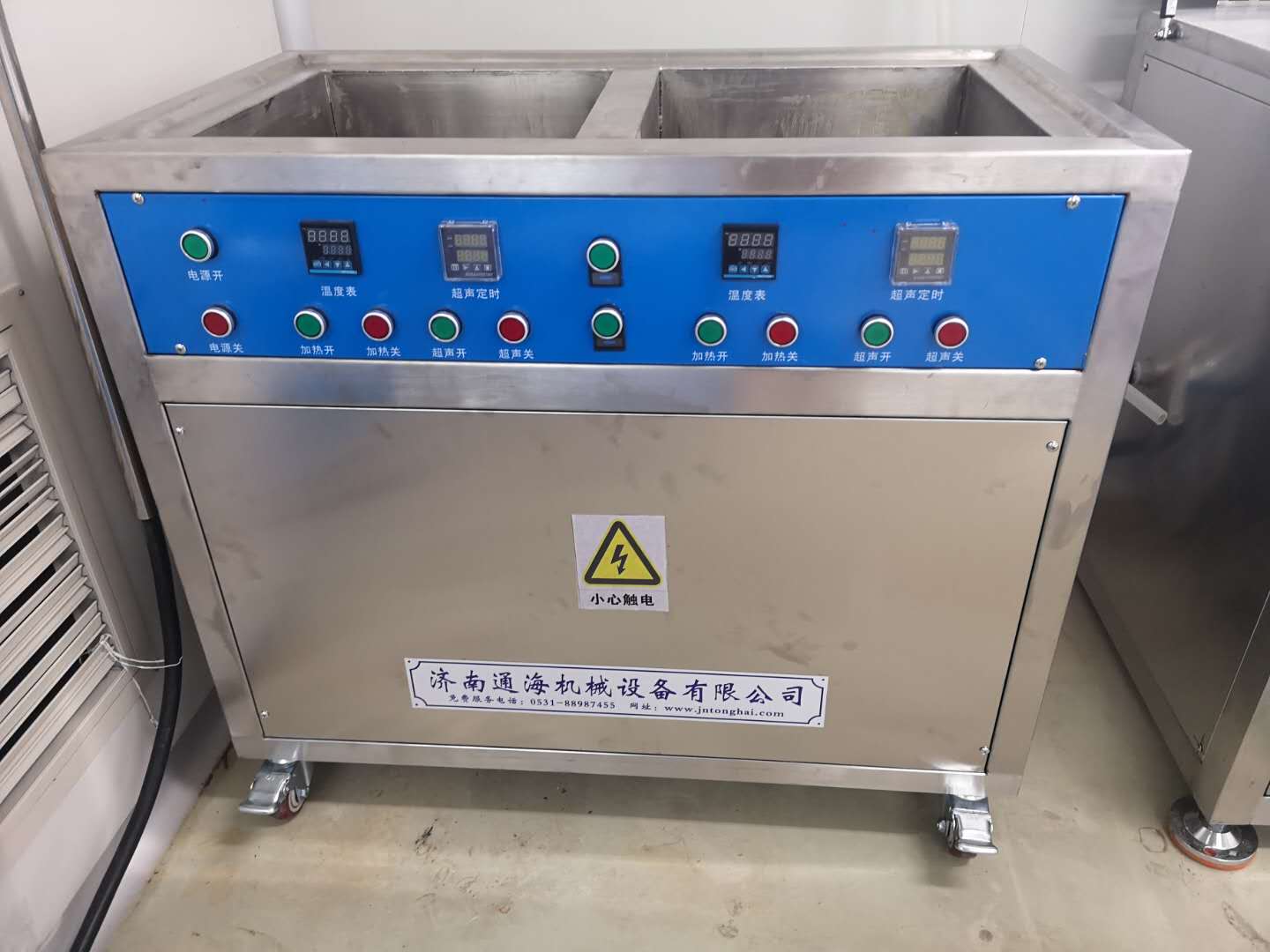

The ultrasonic aluminum cover cleaning machine can carry out ultrasonic cleaning, silicification, pre drying, drying and sterilization of rubber plug or aluminum cover in a closed box at one time. The advanced programmable controller (PLC) is adopted as the main controller, and the electronic touch screen is used for operation. The whole process is displayed in Chinese characters, which is easy to operate.

各種工藝參數如清洗時間、漂洗時間、幹燥時間、幹燥溫度可事先預置，隻需按下“運行”鍵，整個過程可自動完成。除自動方式外還設有“半自動”和“手動”方式可供選擇。

Various process parameters such as cleaning time, rinsing time, drying time and drying temperature can be preset in advance. Just press the "run" key, and the whole process can be completed automatically. In addition to the automatic mode, there are also "semi-automatic" and "manual" modes to choose from.

設備的使用方法以及操作時應注意以下幾點：

The following points should be paid attention to when using and operating the equipment:

（1）生產操作，操作人員應用水配合排刷，將罐體內所有部位清理幹淨，然後

(1) During production operation, the operator shall clean all parts of the tank with water and brush, and then

帶上橡膠手套，用絲毛巾和無鹽水，分別將罐體內各個部位清理幹淨。

Wear rubber gloves and clean all parts of the tank body with silk towel and no salt water.

（2）由化驗人員檢查無鹽水澄明度，合格後方可注如罐內，水質標準毛點

(2) The laboratory personnel shall check that there is no clarity of brine, and it can be injected into the tank only after it is qualified. The water quality standard is the gross point

不多於2個/100ml點。

No more than 2 / 100ml points.

（3）倒入過篩膠約10萬隻，打開無鹽水進水閥，水位高度應溢流孔流出為

(3) Pour about 100000 sieving glue, open the brine free water inlet valve, and the water level shall be at the overflow hole

（4）此時可實行超聲波清洗，調節壓縮空氣攪拌，使膠塞在罐內均勻翻為宜。調節無鹽水流量，產生溢流洗滌。溢流同時可稍打開底部排汙閥放水。

(4) At this time, ultrasonic cleaning can be carried out, and compressed air mixing can be adjusted to turn the rubber plug evenly in the tank. Adjust the flow of no brine to produce overflow washing. At the same time of overflow, slightly open the bottom blowdown valve to drain water.

（5）開啟控製開關，接通JCX—5KW91视频破解版電源開關，延時約15

(5) Turn on the control switch and turn on the power switch of jcx-5kw ultrasonic cleaning machine, with a delay of about 15 minutes

秒中後，即刻聽到繼電器的閉合聲，機器與洗滌可正常工作（具體情況可參閱

After seconds, the closing sound of the relay is heard immediately, and the machine and washing can work normally (see for details)

DY—5KW超聲波清洗使用說明書）。

Dy-5kw ultrasonic cleaning operation manual).

（6）在洗膠塞時，膠塞表麵粗糙不齊，易掉膠宵難於洗滌時，可減少洗滌量或

(6) When washing the rubber plug, the surface of the rubber plug is rough and uneven, which is easy to fall off. When it is difficult to wash at night, the washing amount can be reduced or

減少空氣攪拌，以降低膠塞在洗滌過程中的互相磨擦，降低膠質間顆粒的脫落。

Reduce air stirring to reduce the mutual friction of rubber plugs in the washing process and reduce the falling off of colloidal particles.

（7）洗滌1.5小時後，由質檢員檢驗，待檢驗合格後，首先關掉超聲波主機電源，切斷控製開關，停水、停氣，放盡罐內洗滌水，然後打開罐內下部的出料口，出料即可。

(7) After washing for 1.5 hours, it shall be inspected by the quality inspector. After passing the inspection, first turn off the power supply of the ultrasonic host, cut off the control switch, stop water and gas, drain the washing water in the tank, and then open the discharge outlet at the lower part of the tank to discharge the material.
